EXTRA HEAVY DUTY POLYMER DRAINAGE CHANNEL

1000mm x 160mm x 200mm – High Flow Surface Drainage System

This extra heavy duty polymer drainage channel is designed for efficient surface water management in both residential and commercial environments.

Manufactured from 100% recycled polymer, this system delivers excellent durability while remaining resistant to salt, chemicals, and harsh outdoor conditions. Ideal for coastal areas, pool surrounds, driveways, and high rainfall environments.

With a deep 150mm internal drainage channel, this system is built to capture and move large volumes of water efficiently.

KEY FEATURES

• Extra heavy duty construction
• 100% recycled polymer
• Salt & chemical resistant
• Perfect for coastal & pool areas
• Deep 150mm channel for high flow
• Durable and long lasting
• Lightweight and easy DIY install
• Grates can be screwed down for security
• Class A Load Rating – 1.5 Tonne

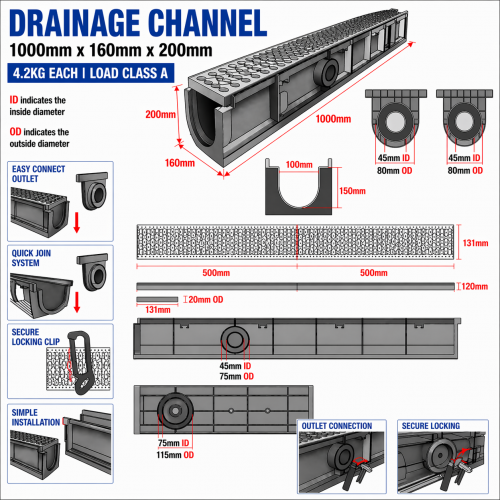

CHANNEL SPECIFICATIONS

• Length: 1000mm
• External Width: 160mm
• Internal Width: 100mm
• External Height: 200mm
• Internal Depth: 150mm
• Material: Recycled Polymer
• Weight: 4.2kg (channel + 2 grates)

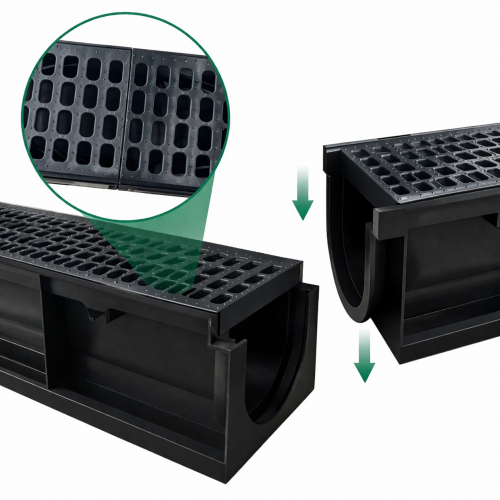

• Connection: Interlocking male & female ends

Tip: For best results, we recommend applying adhesive at joins.

TOP GRATE SPECIFICATIONS

• Width: 135mm
• Length: 495mm
• Thickness: 20mm
• Hole Size: 13mm x 48mm
• 44 holes per grate
• Dual surface: Smooth / Dimpled

SUITABLE APPLICATIONS

• Driveways
• Outdoor paved areas
• Walkways & garden paths
• Pool surrounds
• Residential car parks
• High rainfall areas
• Coastal installations
• Landscaped gardens

MODULAR SYSTEM – EASY TO CUSTOMISE

This system is part of a flexible modular drainage solution, allowing you to design layouts to suit any project.

• 4-Way Cross Connector
• 3-Way Tee Connector
• 2-Way 90° Corner Connector
• End Caps
• 500mm Channels with Grates

Smart Design:
The system uses one central cross connector:

• 4-Way Cross = connects 4 channels
• 90° Corner = uses inserts to redirect flow
• T-Piece = uses insert to block one direction

Important: The cross connector does not include a grate. Standard channel grates extend into the connector to interlock for added strength. Please ensure additional grates are purchased if required.

WHY BUY FROM US?

• Direct importer – no middlemen
• Bulk stock available in Brisbane
• Fast dispatch Australia-wide
• Proven high-quality product
