VERTICAL ALUMINIUM LOUVRE SCREENS & FENCES

DIY • CUSTOM CUT TO SIZE • POWDER COATED ALUMINIUM

HOW TO GET A FAST PRICE

For a fast quote, simply SMS 0414 237 573 with:

• Your required panel width
• Your required panel height
• Your preferred slat colour
• Keep individual panel sizes under 2400mm wide

We offer both 100mm and 65mm aluminium louvre systems.

We are a DIY supply business only. Pickup is available directly from our Narangba factory, or we can arrange freight throughout Australia.

TWO LOUVRE SYSTEMS AVAILABLE

100mm Louvre System

• Heavy-duty 100mm x 16mm aluminium slats
• Two internal reinforcing ribs
• 65mm wide louvre holder extrusion
• 10mm visual gap between slats
• Approximately 24mm airflow opening

65mm Louvre System

• Heavy-duty 65mm x 16mm aluminium slats
• Two internal reinforcing ribs
• 50mm wide louvre holder extrusion
• 10mm gap between slats
• Approximately 10mm airflow opening

100mm LOUVRE SLAT and FRAME COLOURS

65mm LOUVRE SLAT COLOURS

LOUVRE TRACK COLOURS

The louvre holder rails are available in:

• Satin Black
• Dark Grey
• Gloss White

HEAVY-DUTY ALUMINIUM CONSTRUCTION

Our louvre systems are manufactured from strong powder-coated aluminium designed for Australian outdoor conditions.

The 100mm x 16mm and 65mm x 16mm aluminium slats both feature two internal reinforcing ribs for additional strength.

The powder-coated aluminium finish means there is no regular painting required and very little ongoing maintenance.

Our louvre holders are rigid aluminium extrusions with precision-cut slat openings that hold every louvre at a consistent fixed angle.

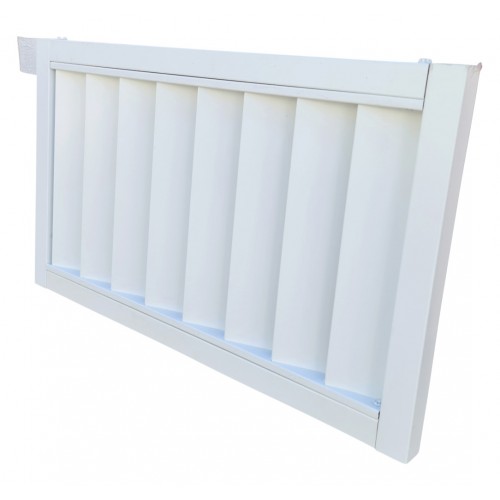

A 50mm x 50mm aluminium box frame surrounds the complete panel, creating a strong, self-supporting finished screen.

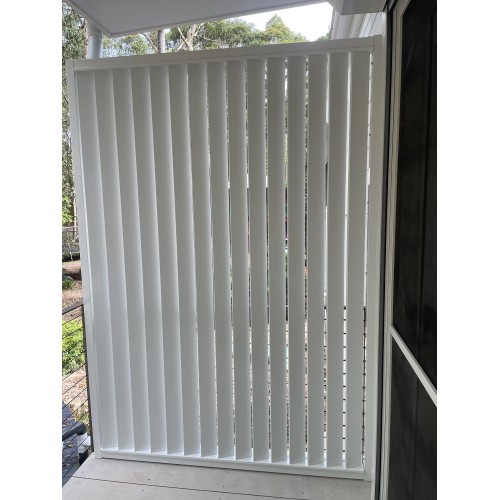

INSTALL THEM ALMOST ANYWHERE

Your louvre panels can be installed between:

• Aluminium posts
• Brick piers
• Timber posts
• Steel posts
• Existing structures

We stock both 76mm x 76mm and 100mm x 100mm aluminium posts.

Our 76mm x 76mm aluminium posts start from $40 per linear metre, cut to your required length.

HOW VERTICAL LOUVRE WIDTHS WORK

Because this is a vertical louvre system, panel widths are determined by the number of complete louvre slats used.

For the 100mm louvre system, widths increase or decrease in approximately 106.5mm increments.

For the 65mm louvre system, widths increase or decrease in approximately 65.4mm increments.

If the exact width you provide does not finish perfectly on a complete vertical slat, we manufacture the surrounding frame with an even clearance on the left and right sides so the finished panel remains balanced.

Simply provide us with the overall height you require. We calculate the necessary allowances for the frame and louvre system.

SIMPLE DIY ASSEMBLY

Most customers assemble their louvre panels on the ground before installing the completed panel into position.

1. Assemble the 50mm x 50mm outer box frame using the supplied internal angles.
2. Position the louvre holder rails inside the frame.
3. Slide the first aluminium slat into the precision-cut louvre openings.
4. Check the slat is level and secure it from the rear using the supplied Tek screws.
5. Continue inserting the remaining slats.
6. Once all slats are fitted, carefully position the opposite louvre holder over the ends of the slats.
7. Secure the completed panel and install it into your opening.

We generally allow approximately 4mm overall clearance for the slats.

The screws are positioned externally, so when assembling your panel simply choose which side you want the fixings to face.

Protective film may be left on the aluminium during manufacturing. Remove the film from the sections being inserted into the louvre holders as you assemble the panel.

WHAT WE SUPPLY

• Aluminium louvre slats custom cut to size
• Louvre holder rails
• 50mm x 50mm surrounding panel frame
• Internal frame angles
• Required assembly screws
• Centre support rail where required

Important: We supply the screws required to assemble the louvre panel itself. Fixings required to attach the completed panel to your house, posts, brickwork, timber, steel or other structure are not included.

WHAT YOU SHOULD KNOW BEFORE ORDERING

• A $100 payment per custom panel is required before cutting for pick-up orders
• Custom orders are cut every Tuesday and Thursday.
• Protective film may remain on the material for you to remove after assembly.
• Please allow approximately 3–6mm manufacturing tolerance in final sizes.
• Vertical louvre widths work to fixed slat increments.
• We calculate the frame allowances from the overall dimensions you provide.

DIY SUPPLY ONLY

We do not provide home installation, site measuring or site visits.

You provide us with the required sizes and we manufacture the components to suit. Your order is then supplied as a custom-cut DIY flat-pack system ready for you to assemble and install.

This keeps our prices low and allows customers throughout Australia to access custom-made aluminium screening without paying traditional fencing-company installation prices.

DIRECT FROM OUR BRISBANE FAMILY BUSINESS

We are a small family-run Brisbane business operating directly from our Narangba factory.

Our focus is simple – provide strong aluminium products, transparent pricing and fast custom cutting without the traditional fencing-company overheads.

If your measurements change, don't be afraid to ask for another quote. We can normally calculate a new price within minutes.

AUSTRALIA-WIDE BULKY GOODS DELIVERY

We can wrap and freight our DIY aluminium products throughout Australia.

For all other Australian locations, contact us with your suburb or postcode and we can provide a freight quote as we are Australiawide shippers
