WINDOW SCREENS FOR HOME

Custom Cut Aluminium Slat Window Screens – DIY Flat Pack | 48 Hour Turnaround

MUST READ – DIY PRODUCT

These screens are supplied as a DIY flat pack and are designed to be easy to assemble and install.

• Fully concealed screws
• Clean modern architectural finish
• No visible fixings on the front
• Custom cut to your exact size
• This description uses 65mm slats, if you wsnt to use 100mm slats then we have 7 colour options

HOW TO GET FAST PRICING

SMS your sizes to 0414 237 573

Please include:

• Width and height
• Colour of slats and frames
• Gap size – 10mm, 16mm or 40mm

We can quote most jobs within 5 minutes when online, guaranteed quoted overnight.

PRODUCT DETAILS

All screens are built using our heavy-duty aluminium slat system.

• Slats: 65mm high x 16mm thick
• Strength: 2 internal reinforcing ribs
• Finish: Powder coated aluminium
• Design: Horizontal slat layout

Our window screen slat holders, called a F-hannel, are a unique proprietary interlocking extrusion that securely locks in and connects all slats like a brace to make the panels super strong.

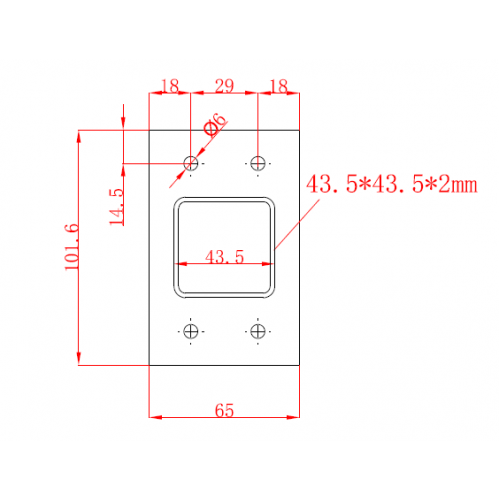

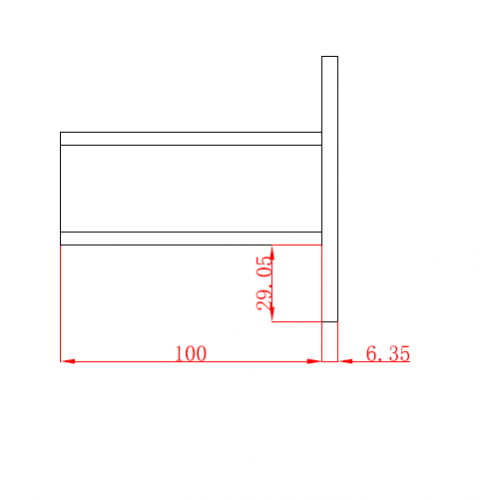

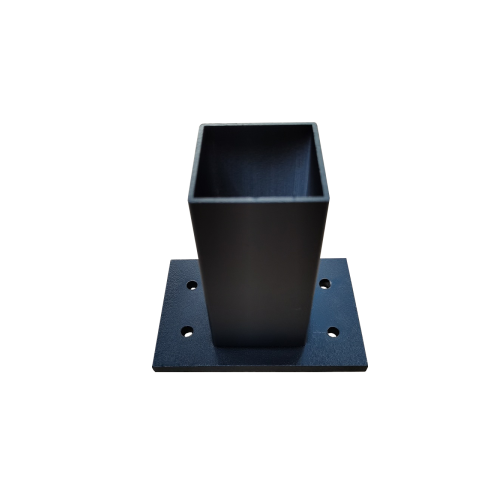

The screw F-channels connect into 50x50mm side rails, which hold the brackets that connect to your building.

IMPORTANT SIZING NOTES

Make sure you provide sizes wider than your windows, as you need a minimum of 60mm bracket space on either side to connect to your building.

Depending on your wall surface, you may need to allow up to 100mm on each side.

We will advise any height adjustment, to allow a full slat to end on the top and bottom of your screen.

Remember: the width size you give us is the total window screen size, so think about where the brackets will hit your house.

COLOUR OPTIONS

65mm slat Colours

• Dark Grey
• Satin Black
• Gloss White

Side Rail Colours

• Gloss White
• Satin Black
• Dark Grey

SUPER EASY DIY

• Strongest slats in Australia with 2 internal ribs
• Powder coated aluminium
• No rusting and no painting required
• 3 slat and frame colours to choose from
• Free inserts for 10mm, 16mm or 40mm gaps
• White is gloss finish
• Black and Grey are matt/satin finish

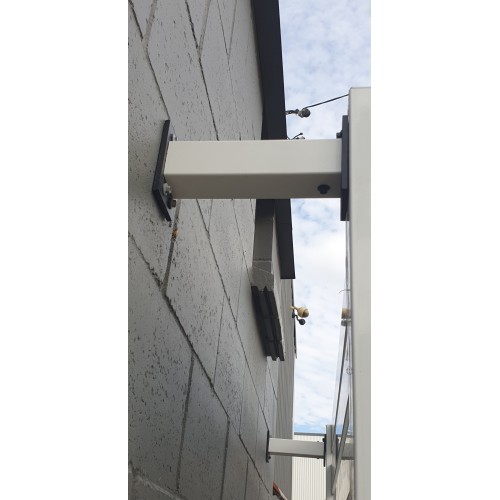

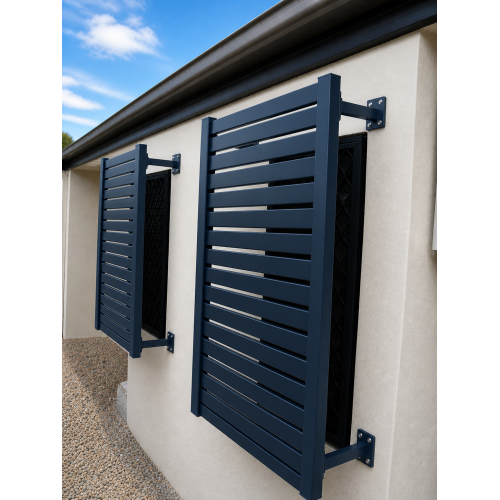

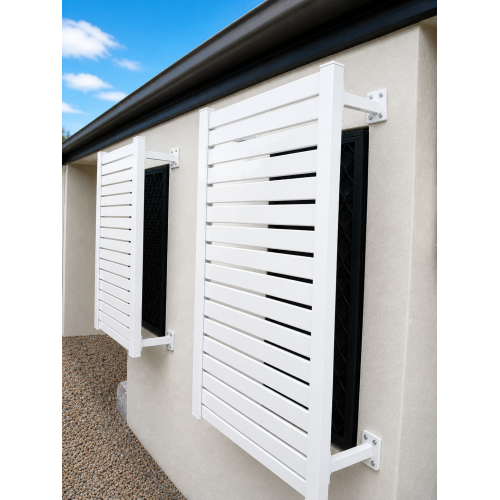

• 300mm extender arms supplied standard and if you need longer, just ask
• Extender arms can be cut shorter if required by you
• 2 x DIY brackets per extender
• No wall fixing bolts supplied
• 4 mounting arms standard or 6 if over 1500mm wide
• All slats lock into interlocking channels with concealed fixings
• 7 colour options if you use 100x16mm slats

INSTALLATION STEPS

1. Construct screen on ground
2. Connect screw channels to side rails
3. Insert slats using gap spacers
4. Fix mounting brackets
5. Insert arms
6. Mount to wall

PRICE GUIDE

Example:

1400w x 1361h – 16mm gaps – White = $828

Approx $435 per SQM

PRODUCTION TIMES

48 hour turnaround available on many custom aluminium orders.

We cut orders every Tuesday and Thursday.

Get your order in before cut day so we can process it quickly.

We are a small family-run Brisbane company, but we fill all our orders each cut day and never leave anyone hanging.

BULKY GOODS DELIVERY

If only buying  1 x panel then Australia wide wrapping and shipping = $120,

or if buying more panels

• $140 flat rate fee to the Northside of Brisbane
• $200 flat rate fee to the Southside of Brisbane
• $250 flat rate fee to the Gold Coast, Ipswich or Sunshine Coast
• $350 flat rate fee to Sydney or Rockhampton
• $450 flat rate fee to Melbourne or Townsville

All other areas can be quoted.

GET A FAST QUOTE

Pickup Narangba | Custom cut Tuesdays & Thursdays
