DIY ALUMINIUM RAKED STAIR RAILINGS

WE CUT THE RECTANGLE - YOU CUT THE ANGLES!

Custom Cut to Size | Swivel Brackets Supplied | DIY & Save

Looking for a modern, heavy-duty aluminium railing for your stairs without paying expensive custom installation costs?

Our factory-direct DIY railing system makes it simple!

We supply a custom-sized RECTANGULAR aluminium panel in flat-pack pieces, complete with swivel brackets. YOU cut the required angles and assemble the railing onsite to suit your stairs.

Our system features heavy-duty vertical aluminium slats, concealed screws, durable powder-coated finishes and adjustable swivel brackets.

WHY CHOOSE OUR DIY STAIR RAILINGS?

• Heavy-duty, all-aluminium construction
• Custom rectangular panel sizes
• Adjustable swivel brackets supplied
• DIY angled cutting to suit your stairs
• Concealed screws for a sleek finish
• Durable powder-coated aluminium
• No welding required for standard assembly
• Matching posts and accessories available
• Factory-direct pricing
• Australia-wide delivery

AVAILABLE COLOURS

• Gloss White
• Satin Black
• Dark Grey (Monument)
• Light Grey (Shale Grey)
• Paperbark Cream
• Classic Cream
• Deep Ocean Blue
• Merbau Woodgrain

PLEASE NOTE: Swivel stair brackets are only available in Black or White. You can DIY paint the brackets to match other colours using a suitable coating system.

CHOOSE YOUR VERTICAL SLAT GAPS

Choose from the following nominal gaps:

10mm | 16mm | 40mm | 80mm

Because panels are custom sized, the first and last slat gaps may vary slightly where the overall width does not divide evenly into the selected slat and gap combination.

HEAVY-DUTY PRODUCT SPECIFICATIONS

• Standard vertical slats: 100 × 16mm aluminium
• Slat wall thickness: 1.2mm
• Optional vertical slats: 65 × 16mm
• Top and bottom rails: 80 × 50mm combined profile
• Rail wall thickness: 1.5mm
• Posts: 76 × 76mm aluminium, sold separately
• Finish: Powder-coated aluminium
• Supply: Rectangular components, cut to size and flat packed
• Final angled cutting: Completed by customer

Our 80 × 50mm rails are made using interlocking 50mm and 30mm aluminium channel profiles.

The concealed screw channel may require DIY trimming or modification when fitting the swivel brackets and adjusting the rail angle.

The cut ends of the vertical slats are concealed inside the channels, creating a professional finish without exposed fixing screws.

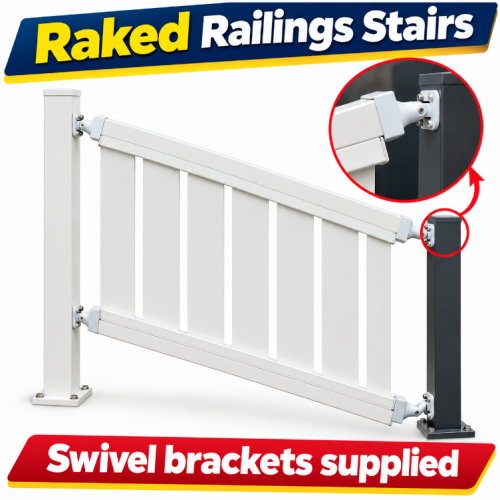

SWIVEL BRACKETS SUPPLIED

Our adjustable swivel brackets allow the top and bottom rails to connect to your posts at the required stair angle.

• Adjustable for angled installations
• Available in Black or White
• Designed for DIY fitting
• Secure rail-to-post connection when correctly installed
• Suitable for a range of stair angles, subject to bracket adjustment limits

Some customers prefer alternative mounting methods, including concealed connections or different brackets at each end.

Standard L-brackets are also available in Black, White or Dark Grey.

EXAMPLE FACTORY-DIRECT PRICING

Remember: We quote and supply a rectangular panel, not a finished angled panel.

HOW TO MEASURE, ORDER & INSTALL

STEP 1 - MEASURE YOUR STAIRS

Measure the required railing length along the stair slope and determine your finished railing height.

STEP 2 - ALLOW EXTRA MATERIAL

Because the vertical slats require angled cuts, allow extra height when ordering your rectangular panel.

We recommend at least 200mm additional height. The actual amount required depends on the stair angle, slat dimensions and your cutting method.

STEP 3 - SEND US YOUR RECTANGULAR SIZE

Provide the WIDTH and HEIGHT of the rectangular material you want supplied, plus your colour and preferred slat gaps.

STEP 4 - WE CUT YOUR ORDER

We cut your aluminium profiles to the requested rectangular measurements and supply them flat packed in individual pieces.

STEP 5 - YOU CUT THE ANGLES

At your property, measure and cut the vertical slats to match the angle of your staircase.

STEP 6 - ASSEMBLE THE RAILING

Fit the slats into the top and bottom channels, make any required rail adjustments and secure the concealed fixing system.

STEP 7 - FIT THE SWIVEL BRACKETS

Adjust the brackets to your stair angle and securely attach the completed railing to your posts.

CUTTING TOLERANCES

Allow approximately 2–3mm tolerance for factory cutting.

Please check all dimensions carefully before ordering and allow sufficient material for final onsite trimming.

SAFETY & COMPLIANCE

Stair railings, balustrades and barriers must comply with applicable Australian building requirements for their intended use.

Customers must confirm the required railing height, openings, structural loads, fixings and suitability of the proposed design.

Additional requirements may apply to elevated areas, decks, balconies and pool barriers.

Profile dimensions alone do not establish compliance. Obtain professional advice where required before installation.

FAST FACTORY CUTTING

Our regular cutting days are:

TUESDAY & THURSDAY

Orders are generally prepared within approximately 48 hours where stock and cutting schedules permit. Please place your order before the relevant cutting day.

WAREHOUSE & COLLECTION

10 Richards Road
Narangba QLD 4504

Opening Hours:
Monday–Friday: 7:30am–5:00pm

Saturday collection may be arranged for orders placed earlier in the week.

AUSTRALIA-WIDE BULKY GOODS DELIVERY

We ship our flat-pack aluminium railing products throughout Australia.

Single panel or gate: Wrapping and delivery from $120, depending on dimensions and destination.

Flat-rate delivery guide for larger orders:

Delivery prices are a guide for standard service areas and eligible order sizes. Please confirm freight before ordering.

We use backload transport where practical and can often deliver to regional towns along our main freight routes.

Some deliveries may occur after hours. Other destinations are quoted individually.

GET YOUR CUSTOM DIY QUOTE TODAY

Send us your RECTANGULAR panel width and height, preferred colour, vertical slat gap and delivery postcode.

We'll quote your custom-cut aluminium components and swivel brackets.

FACTORY DIRECT | CUSTOM CUT | DIY & SAVE
